Compact Spiral

Small in size but with maximum impact. For quick freezing, chilling and cooling volumes in the region of 200 kg/hr to 2,000 kg/hr of products with short to medium retention times.

Features

Feature tick

SPIRAL CONVEYOR BELT OPTIONS

A choice between stainless steel in many different options and plastic, all specifically designed to suit your different product applications.

Feature tick

CIP SYSTEMS

Various CIP options to suit your production environment and requirements

Feature tick

CONTROL PANEL

Flexible control panel design, touchscreen design or mimic configurations

Feature tick

OPTIONAL AIRFLOW

Horizontal airflow to give high efficiency heat transfer regardless of belt coverage. Optional vertical airflow to suit production requirements

Feature tick

MATERIALS OF CONSTRUCTION

Stainless steel product zone or galvanized steel option

Feature tick

EVAPORATORS

High efficiency evaporators with stainless steel tubes and aluminium fins or stainless tube and fins. Wide fin spacing to suit extended running options

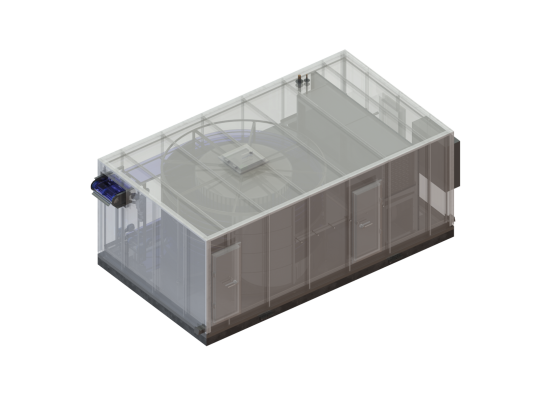

5570 Render1A00 NEW
5570 Render1A00 NEW

BESPOKE DESIGN TO SUIT
YOUR REQUIREMENTS

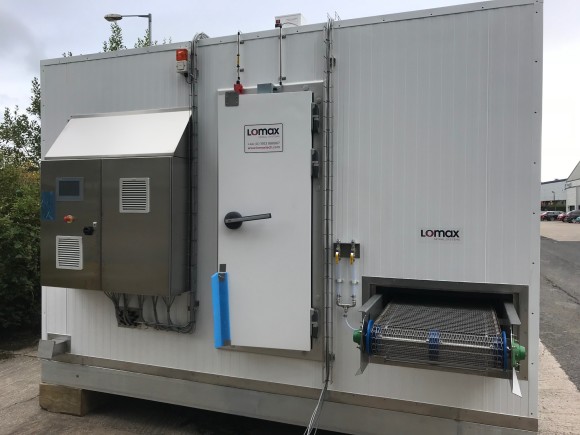

Compact One-Piece Spiral Systems typically handle between 200 – 2,000 kg/hr of product with a short to medium dwell time through utilising various belt widths and multiple belt levels.

The Lomax Technical Sales and Project Team works closely with clients in the selection of the spiral system to suit exact product and site space requirements and will advise if a larger  Single Drum, or Twin Drum Spiral System Spiral is more appropriate for the application or budget available.

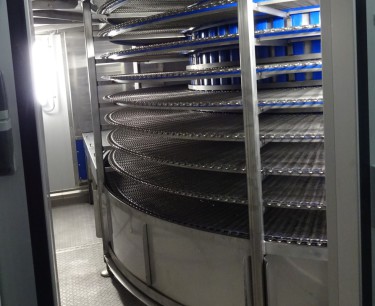

lomax spiral freezer chiller side view

Benefits

FLEXIBILITY
& INNOVATION

  • For 200 kg/hr to in excess of 2,000 kg/hr of product
  • Multiple belt width, configuration and material options
  • Branded major components for maximum reliability
  • Ultra-efficient dual-flow air system with variable control options
  • For freezing and cooling packed and unpacked product
  • British bespoke design and manufacture

LATEST TECHNOLOGY

FOCUSED DESIGn

  • Spiral belt options include various widths, different infeed and exit orientations, all stainless steel, all plastic or hybrid cross of stainless steel and plastic materials according to application and preference
  • Stainless steel structure hygienically designed to ensure quick cleaning and max uptime
  • Branded main components ensuring highest quality and reliable backup and spares
  • Various levels of ongoing service support offered post warranty

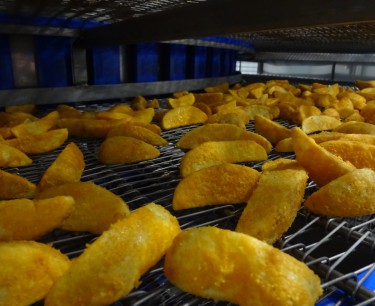

lomax potato wedges in spiral freezer

SUPPORTING EACH OTHER

Lomax is an independent British Engineering Company that originated in 1997 and has supplied and serviced some of the UK and world’s largest brands, but has equally taken good care of small and medium sized private businesses too. Providing a consistently high level of after-sales care has proven to pay-back positively when customers return time and time again to invest in more Lomax equipment.

With a UK based technical team having gained vast industry-wide experience whilst previously working with supplier partners and competitors, Lomax can truly claim to have the skills and expertise to service all customers requiring high quality, reliable and robust systems and technical support.
